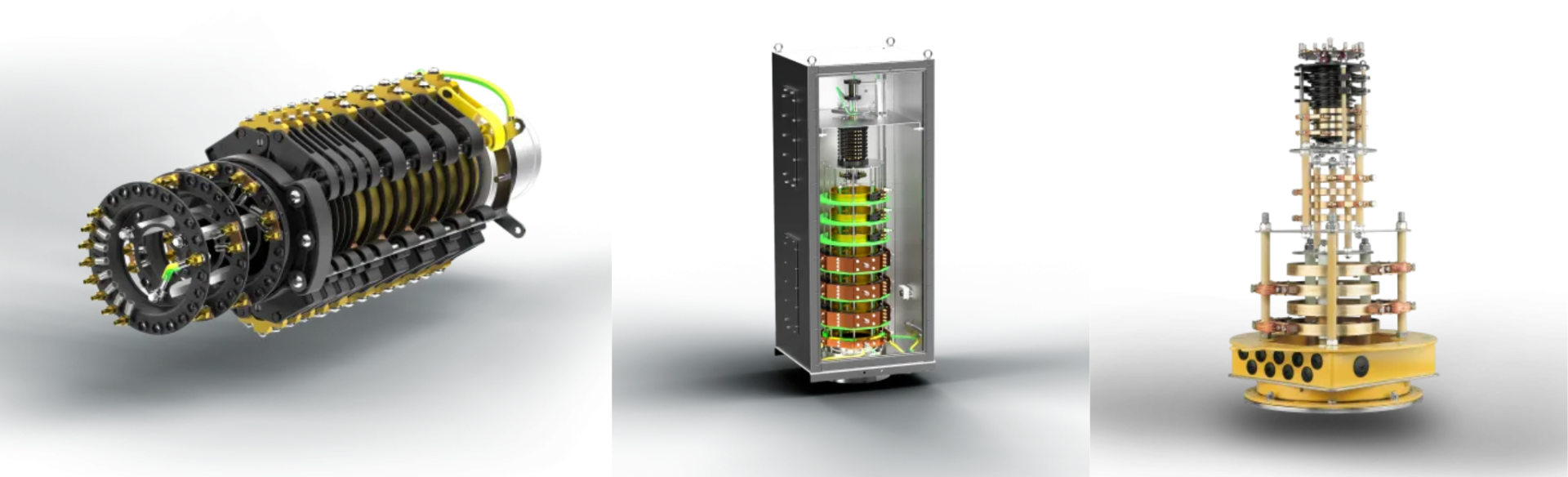

Modular Slip Rings
◉ USR/E-USR Slip Ring Series
– Ứng dụng: Hệ thống cable reel, công nghiệp chung, máy móc xây dựng,...
– Model: USR50 / USR90 / USR120 / E-USR50 / E-USR90
– Protection degree: IP00 (USR) - IP65 (E-USR)
– Max. RPM: 100 rpm
– Voltage: max. 690 VAC - 600 VDC
– Max. current: from mA to 200 A
◉ CGR Slip Ring Series
– Model: CGR 200, CGR 270
– Working temperature: -20 °C / +40 °C
– Max operation speed: 10 rpm
– Max. operating voltage: < 1 kV AC
– Current intensity: from mA to 2080 A
◉ ES/GS Slip Ring Series
– Ứng dụng: Hệ thống khóa cổng, máy móc xây dựng, xe nâng người,...
– Model: ES/GS30; ES/GS45/1; ES/GS45/2; ES/GS45/3; ES/GS18; ES/GS13; ES/GS15; ES/GS16; ES/GS19; ES/GS21; ES/GS29; GS19/13/18
– Protection degree: IP00 (ES) – IP54 or IP65
– Max. RPM: Up to 100 rpm
– Voltage: max 750 V
– Max. current: from mA to 400 A
