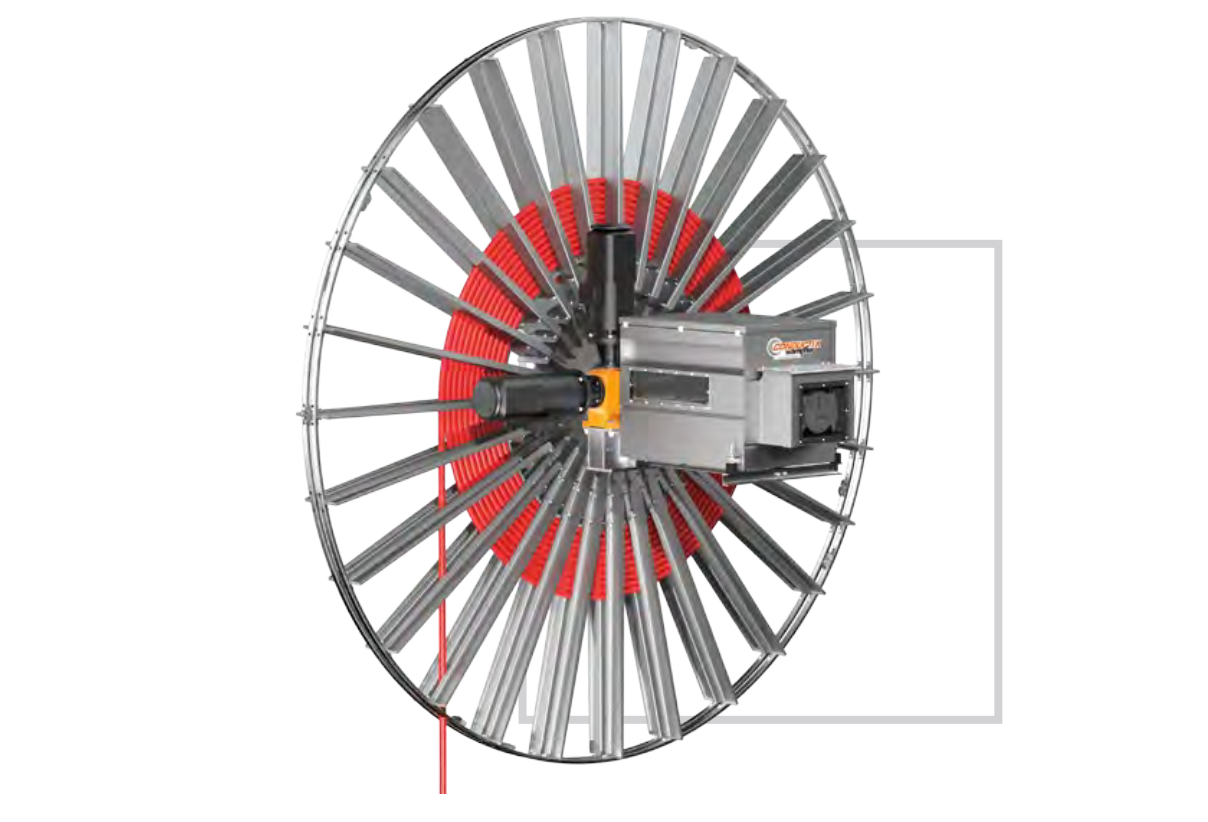

Conductix-Wampfler Series C | Compact
– Ứng dụng:
+ Cẩu giàn (Gantry crane).png)
+ Cẩu trục trên cao (Overhead crane)
– Travel speed: Up to 100m/min
– Winding length: 200m max.
– OD of spoon:
+ Random wind spool: 400 mm ... 1700 mm
+ Monospiral spool and 3-2-3 spool: 1100 mm ... 3600 mm
– Gearbox
+ W: 100 Nm ... 400 Nm
+ BNA: 300 Nm ... 700 Nm
– Slip ring assembly:
+ Power max: 690 V ... 200 A
+ Control: 690 V ... 25 A
+ Data Ethernet: 100 Mbps ... 1 Gbps
– Temperature range: -30°C ... +60°C

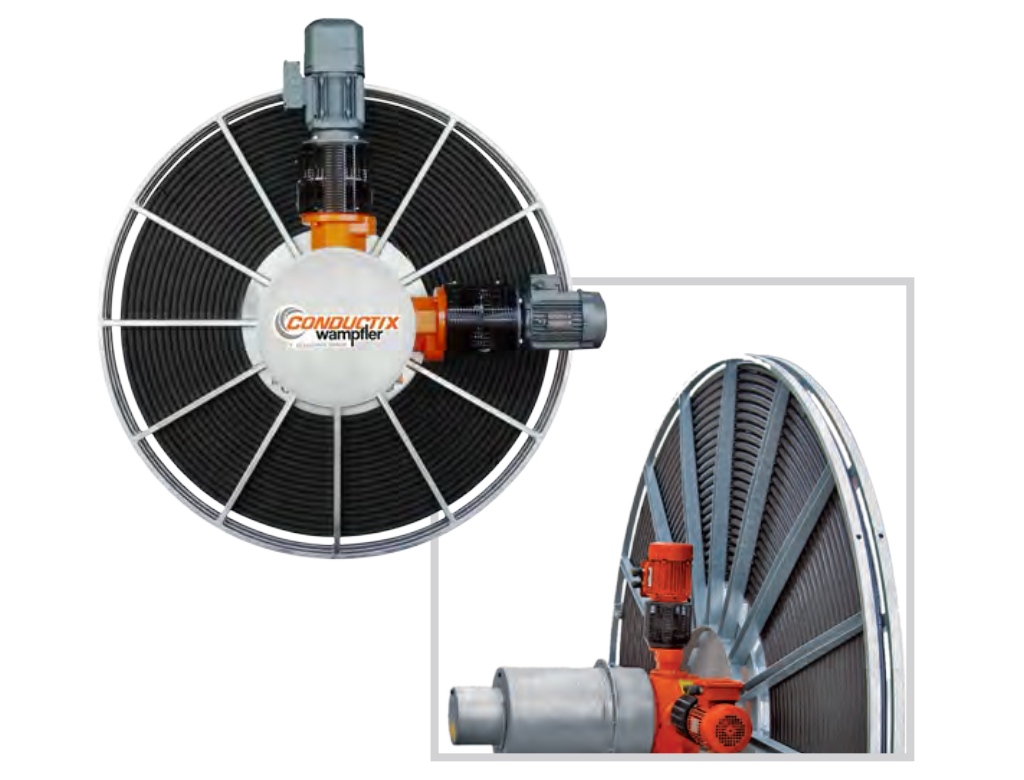

Conductix-Wampfler Series HL | Heavy Load
– Ứng dụng:
+ Cẩu bờ STS, cẩu RMG
+ Stacker
– Travel speed:
+ MAG Drive: Up to 100 m/min
+ SMART Drive: Up to 180 m/min with Active Control Unit
Up to 50 m/min with Core Control Unit
– Winding length: 700 m max.
– OD of spoon: Monospiral spool or 3-2-3 spool: 1100 mm ... 8000 mm
– Gearbox
+ BNA: 1100 Nm – 16000 Nm
+ HD: 3400 Nm – 6500 Nm
+ KHD: 2400 Nm – 10000 Nm
– Slip ring assembly:
+ Power low voltage max: 690 V – 1600 A
+ Power high voltage max: 24000 V – 500 A
+ Control max: 500 V – 25 A
+ Data: Ethernet 100 Mbps – 1 Gbps I Fiber optic Multimode – Single Mode
– Temperature range: -40°C ... +60°C

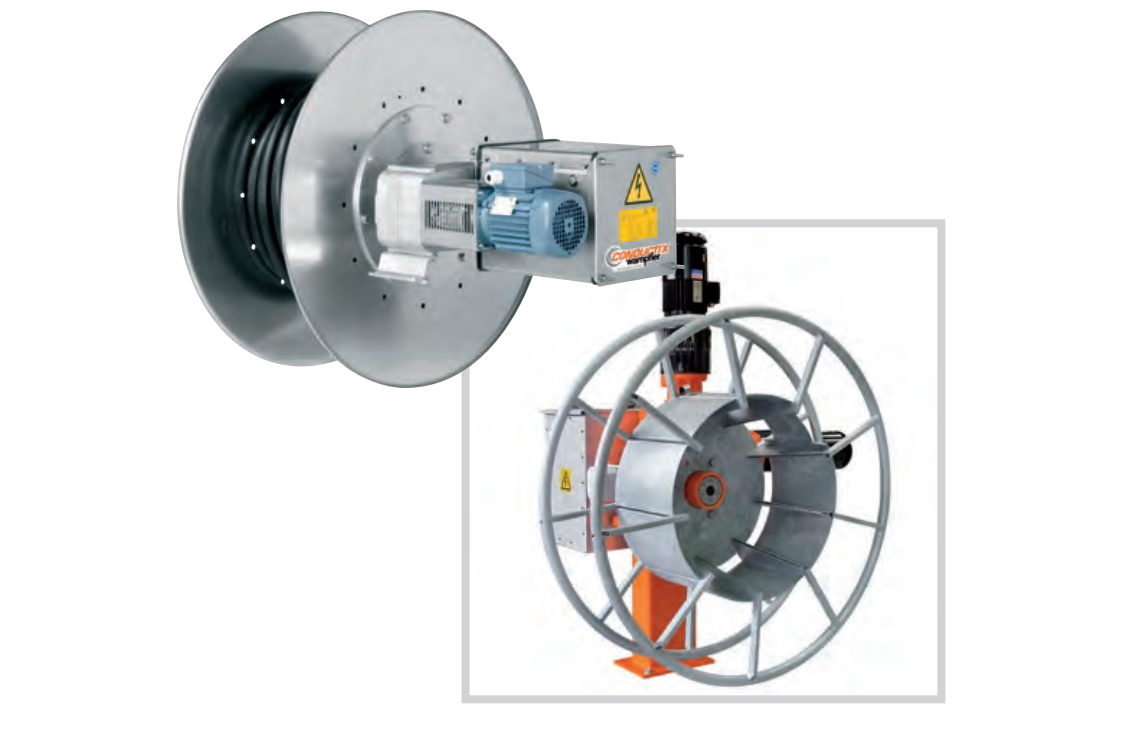

Conductix-Wampfler Series HD | High Dynamics
– Ứng dụng:
+ Cẩu STS, cẩu E-RTG, A-RTG, cẩu RMG,...
– Travel speed:
+ MAG Drive: up to 150 m/min
+ SMART Drive: up to 300 m/min
– Winding length: 700 m max.
– OD of spoon:
+ Monospiral spool: 1100 mm ... 8000 mm
– Gearbox
+ BNA: 1100 Nm – 10000 Nm
+ KHD: 2400 Nm – 10000 Nm
– Slip ring assembly:
+ Power low voltage max: 690 V – 1600 A
+ Power high voltage max: 24000 V – 500 A
+ Control max.: 500 V – 25 A
+ Data: Ethernet 100 Mbps – 1 Gbps I Fiber optic Multimode – Single Mode
– Temperature range: -40°C ... +60°C
