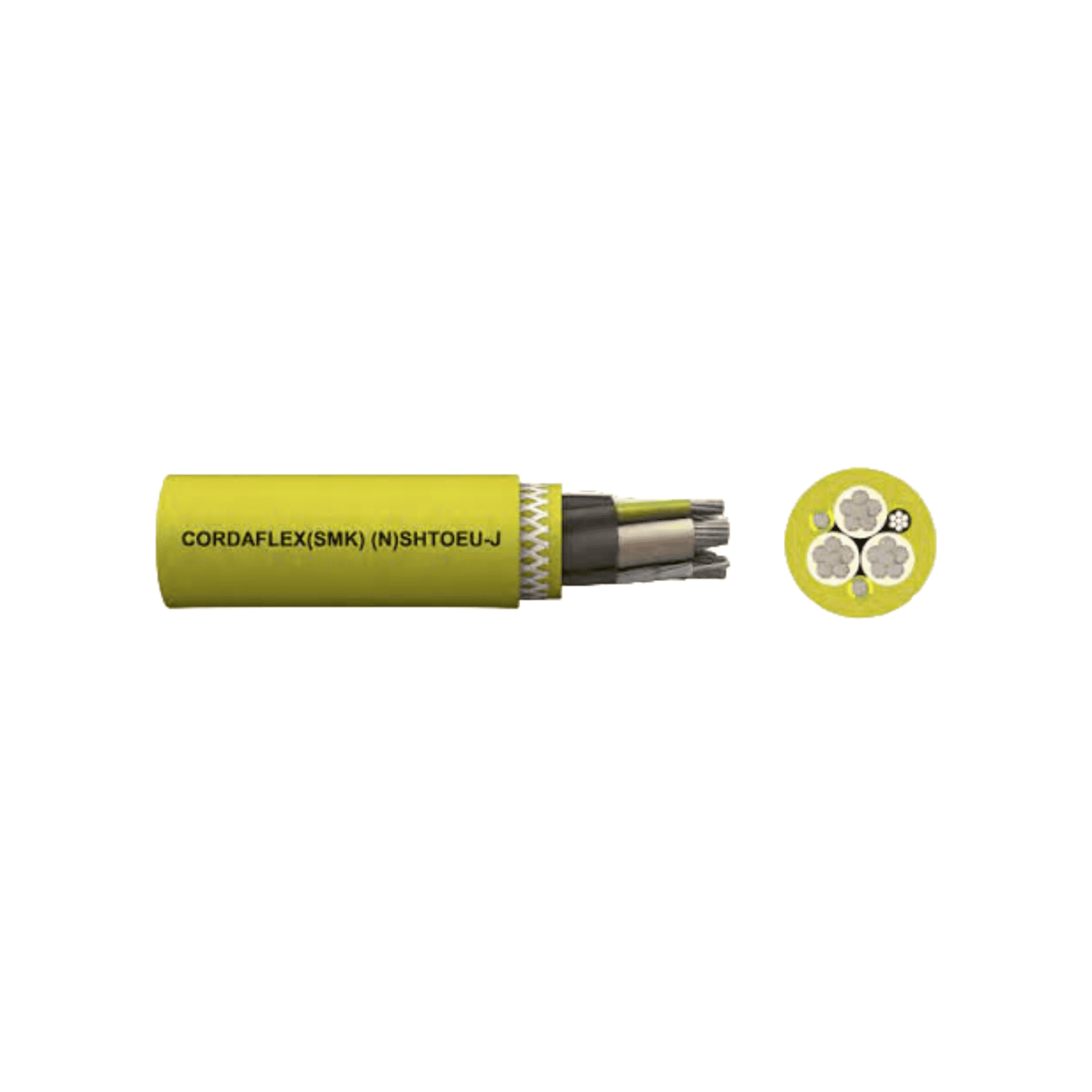

Low voltage reeling cable for E-RTG`s
Brand: CORDAFLEX(SMK)
Type: (N)SHTOEU-J
Standard: Based on DIN VDE 0250-814
Certifications / Approvals: VDE Reg. Nr. 7519; GOST-R
Electrical parameters:
Rated voltage: 0.6/1 kV (600/1000V)
Max. permissible operating voltage: 0.7/1.2 kV AC
0.9/1.8 kV DC
AC test voltage: 3.5 kV (5 min.)
Data transmission: Special design with fibre-optics for trouble free data transmission at high data rates
Current carrying capacity description: Acc. to DIN VDE 0298-4
Products:
| Number of cores x cross section | Part number | Conductor diameter max. [mm] | Outer diameter min. [mm] | Outer diameter max. [mm] | Bending radius free moving min. [mm] | Weight (approx.) [kg/km] | Permiss-ible tensile force max. [N] | Coductor resistance at 20°C max. [Ω/km] | Current carrying capacity (*) [A] | Short circuit current (conductor) [kA] |
| (N)SHTOEU-J power cables, 3-core design, earth conductor split in three |
|
|
|
|
|
|
|
|
|
|
| 3x50+3x25/3 | 20004038 | 10.3 | 34.4 | 37.4 | 187 | 2810 | 4500 | 0.39 | 202 | 7.15 |
| 3x70+3x35/3 | 20004039 | 12 | 39.7 | 42.7 | 214 | 3860 | 6300 | 0.28 | 250 | 10.01 |
| 3x95+3x50/3 | 20004040 | 14 | 44.3 | 47.3 | 237 | 4950 | 8550 | 0.21 | 301 | 13.59 |
| 3x120+3x70/3 | 20004041 | 15.8 | 51 | 55 | 275 | 6440 | 10800 | 0.16 | 352 | 17.16 |
| 3x150+3x70/3 | 20004042 | 17.5 | 53.9 | 57.9 | 290 | 7500 | 13500 | 0.13 | 404 | 21.45 |
| 3x185+3x95/3 | 20004043 | 19.4 | 58.9 | 62.9 | 315 | 8990 | 16650 | 0.11 | 461 | 26.46 |
| 3x240+3x120/3 | 20004044 | 22.5 | 67.4 | 71.4 | 357 | 11940 | 21600 | 0.08 | 540 | 34.32 |
| 3x300+3x150/3 | 20051390 | 25.2 | 75.6 | 79.6 | 398 | 14740 | 27000 | 0.07 | 620 | 42.9 |
| (N)SHTOEU-J 3-core design power cables with FO, earth conductor splitted in two | ||||||||||
| 3x35+2x16/2+1x(6G62,5) | 8.4 | 35.7 | 38.7 | 194 | 2390 | 3150 | 0.565 | 162 | 5.01 | |
| 3x50+2x25/2+1x(6G62,5) | 10.3 | 39.9 | 42.9 | 215 | 3220 | 4500 | 0.393 | 202 | 7.15 | |
| 3x70+2x35/2+1x(6G62,5) | 20170684 | 12 | 43.7 | 46.7 | 234 | 4200 | 6300 | 0.277 | 250 | 10.01 |
| 3x95+2x50/2+1x(6G62,5) | 14 | 47.6 | 50.6 | 253 | 5220 | 8550 | 0.21 | 301 | 13.59 | |
| 3x120+2x70/2+1x(6G62,5) | 15.8 | 54 | 58 | 290 | 6700 | 10800 | 0.164 | 352 | 17.16 | |
| 3x150+2x70/2+1x(6G62,5) | 20196602 | 17.5 | 57 | 61 | 305 | 7750 | 13500 | 0.132 | 404 | 21.45 |
| 3x185+2x95/2+1x(6G62,5) | 20155139 | 19.4 | 61.9 | 65.9 | 330 | 9300 | 16650 | 0.108 | 461 | 26.46 |
| 3x240+2x120/2+1x(6G62,5) | 20168346 | 22.5 | 69.7 | 73.7 | 369 | 12320 | 21600 | 0.0817 | 540 | 34.32 |
| 3x300+2x150/2+1x(6G62,5) | 25.2 | 78 | 82 | 410 | 15000 | 27000 | 0.0654 | 620 | 42.9 |
(*) Nominal current carrying capacity for rubber cables laid on a surface, at 30°C ambient temperature.
