Prysmian FESTOONFLEX-LX 0.6/1 kV (N)3GRD3GÖU -J / -O
Kalmar

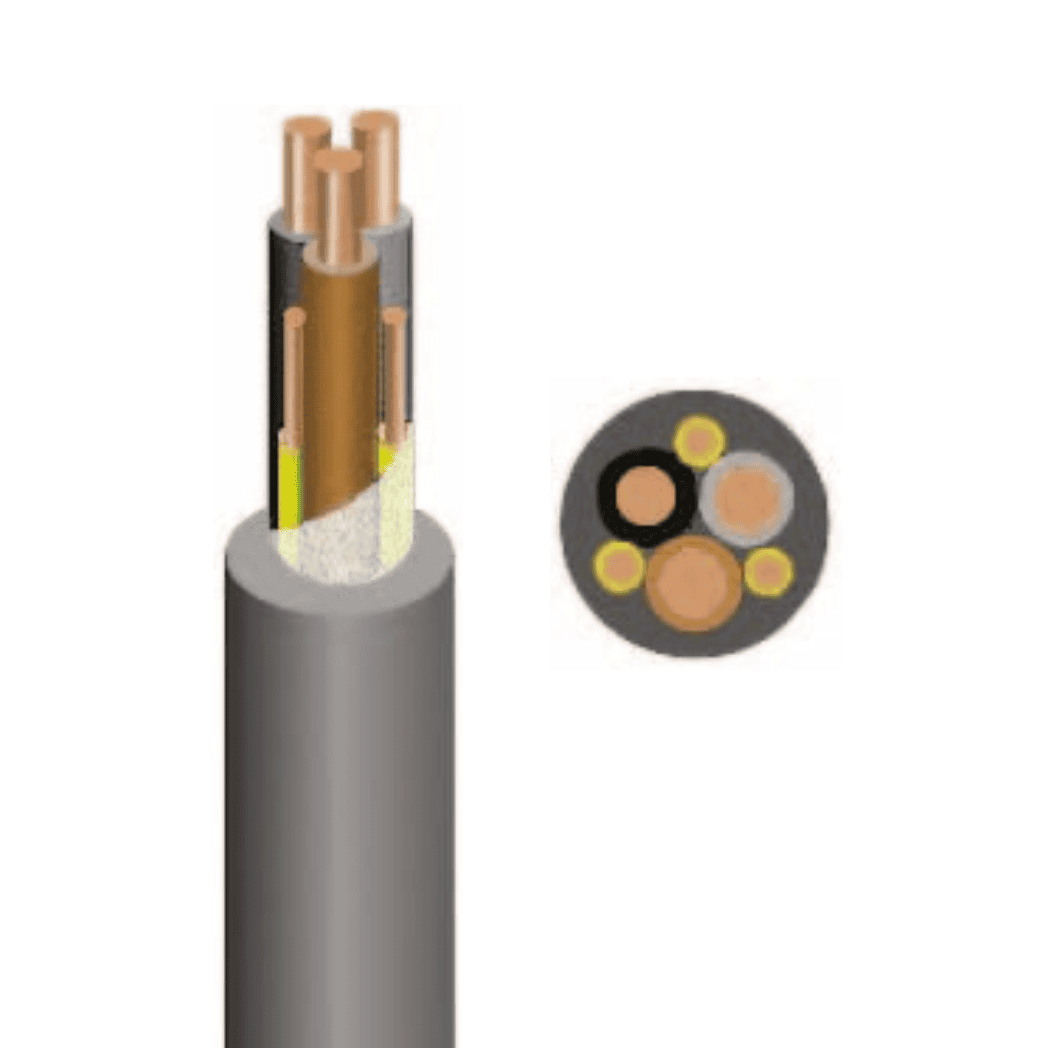

Prysmian FESTOONFLEX-LX 0.6/1 kV
(N)3GRD3GÖU -J / -O rubber cables suitable for festoon systems
| CONSTRUCTION | |
| Conductor | Bare copper conductor, flexible cl. 5 IEC 60228 |
| Insulation | EPR compound better than 3GI3 |
| Screen | For individually screened pairs Made of tinned copper, surface covered: approx. 80% |
| Outer sheath | Black polychloroprene rubber compound UV resistant oil and chemical resistant better than 5GM3 |
| Marking | FESTOONFLEX-L 0.6/1kV nc x (or G) cross section |
| PARAMETERS | ||
| Electrical | Rated voltage | Uo/U = 0.6/1 kV |
| Max. permissible operating voltage in AC systems | Um = 1.2 kV | |
| AC test voltage over 5 minutes | 3.5 kV – power cores & control 2.5 kV – screened pairs cables | |
| Thermal | Fully flexible operation | -30°C |
| Fixed installation | -40°C | |
| Max. permissible operating temperature of the conductor | 90°C | |
| Short-circuit temperature of the conductor | 250°C | |
| Mechanical | Tensile load | Up to 15 N/m2 |
| Reeling operation (Gantry) | 60 m/min | |
| Festoon systems (Trolley) | Up to 240 m/min | |
| Chemical | Resistant to oil | Acc. to VDE / IEC standard |
| Weather resistance | Unrestricted use outdoor and indoor, UV resistant, moisture resistant. | |
FESTOONFLEX-LX 0.6/1 kV (N)3GRD3GÖU -J / -O
| N. of cores and nominal section | Main conductor | Protective earth cond. nom. diam. | Overall diameter | Net weight approx. | Maximum permissible tensile force | Current carrying capacity at 30°C | |||
| D.C resist. at 20°C | Nom. diam. | Min. | Max. | Laid straight | Suspended in free air | ||||
| (n▪mm2) | Ω/km | mm | mm | mm | mm | kg/km | N | A | A |
1x16 | 1,21 | 5,1 |
| 9,9 | 12,0 | 233 | 240 | 141 | 148 |
1x25 | 0,780 | 6,5 |
| 11,8 | 13,9 | 333 | 375 | 187 | 196 |
1x35 | 0,554 | 7,5 |
| 12,8 | 14,9 | 425 | 525 | 231 | 243 |
1x50 | 0,386 | 9,1 |
| 15,3 | 17,4 | 603 | 750 | 288 | 302 |
1x70 | 0,272 | 10,8 |
| 17,1 | 19,2 | 816 | 1.050 | 357 | 375 |
1x95 | 0,206 | 12,1 |
| 18,4 | 20,5 | 1.012 | 1.425 | 430 | 452 |
1x120 | 0,161 | 14,3 |
| 21,4 | 23,5 | 1.323 | 1.800 | 503 | 528 |
1x150 | 0,129 | 16,1 |
| 23,6 | 25,7 | 1.627 | 2.250 | 577 | 606 |
1x185 | 0,106 | 17,5 |
| 25,8 | 27,9 | 1.950 | 2.775 | 658 | 691 |
1x240 | 0,0801 | 19,9 |
| 28,0 | 31,2 | 2.466 | 3.600 | 771 | 810 |
3x25+3G16/3 | 0,780 | 6,5 | 3,0 | 25,5 | 27,6 | 1.354 | 1.125 | 131 | 138 |
3x35+3G16/3 | 0,554 | 7,5 | 3,0 | 27,4 | 30,6 | 1.685 | 1.575 | 162 | 170 |
3x50+3G25/3 | 0,386 | 9,1 | 4,0 | 32,0 | 35,2 | 2.329 | 2.250 | 202 | 212 |
3x70+3G35/3 | 0,272 | 10,8 | 4,9 | 36,2 | 39,4 | 3.188 | 3.150 | 250 | 263 |
3x95+3G50/3 | 0,206 | 12,1 | 5,4 | 39,9 | 43,1 | 4.032 | 4.275 | 301 | 316 |
3x120+3G70/3 | 0,161 | 14,3 | 6,6 | 46,3 | 50,3 | 5.382 | 5.400 | 352 | 370 |
4x1,5 | 13,3 | 1,5 |
| 11,5 | 13,6 | 201 | 90 | 23 | 24 |
4x2,5 | 7,98 | 2,0 |
| 12,5 | 14,6 | 260 | 150 | 30 | 32 |
4x4 | 4,95 | 2,4 |
| 14,1 | 16,2 | 354 | 240 | 41 | 43 |
4x6 | 3,30 | 3,0 |
| 16,4 | 18,5 | 476 | 360 | 53 | 56 |
4x10 | 1,91 | 4,0 |
| 19,2 | 21,3 | 696 | 600 | 74 | 78 |
4x16 | 1,21 | 5,1 |
| 22,3 | 24,4 | 1.020 | 960 | 99 | 104 |
4x25 | 0,780 | 6,5 |
| 27,2 | 30,4 | 1.536 | 1.500 | 131 | 138 |
4x35 | 0,554 | 7,5 |
| 30,0 | 33,2 | 1.963 | 2.100 | 162 | 170 |
4x50 | 0,386 | 9,1 |
| 35,4 | 38,6 | 2.764 | 3.000 | 202 | 212 |
4x70 | 0,272 | 10,8 |
| 40,2 | 43,4 | 3.798 | 4.200 | 250 | 263 |
4x95 | 0,206 | 12,1 |
| 44,0 | 48,0 | 4.764 | 5.700 | 301 | 316 |
5x4 | 4,95 | 2,4 |
| 16,0 | 18,1 | 450 | 300 | 41 | 43 |
5x6 | 3,30 | 3,0 |
| 17,8 | 19,9 | 565 | 450 | 53 | 56 |
5x10 | 1,91 | 4,0 |
| 20,1 | 22,2 | 835 | 750 | 74 | 78 |
5x16 | 1,210 | 5,1 |
| 24,3 | 26,4 | 1.232 | 1.200 | 99 | 104 |
5x25 | 0,780 | 6,5 |
| 29,7 | 32,9 | 1.860 | 1.875 | 131 | 138 |
5x35 | 0,554 | 7,5 |
| 33,1 | 36,3 | 2.408 | 2.625 | 162 | 170 |
7x1,5 | 13,3 | 1,5 |
| 15,0 | 17,1 | 340 | 158 | 23 | 24 |
12x1,5 | 13,3 | 1,5 |
| 20,0 | 22,1 | 573 | 270 | 23 | 24 |
18x1,5 | 13,3 | 1,5 |
| 20,5 | 22,6 | 637 | 405 | 23 | 24 |
24x1,5 | 13,3 | 1,5 |
| 23,8 | 25,9 | 837 | 540 | 23 | 24 |
30x1,5 | 13,3 | 1,5 |
| 27,2 | 29,3 | 1.090 | 675 | 23 | 24 |
36x1,5 | 13,3 | 1,5 |
| 27,0 | 30,2 | 1.135 | 810 | 23 | 24 |
7x2,5 | 7,98 | 2,0 |
| 16,4 | 18,5 | 443 | 263 | 30 | 32 |
12x2,5 | 7,98 | 2,0 |
| 22,4 | 24,5 | 785 | 450 | 30 | 32 |
18x2,5 | 7,98 | 2,0 |
| 22,6 | 24,7 | 868 | 675 | 30 | 32 |
24x2,5 | 7,98 | 2,0 |
| 27,1 | 29,2 | 1.203 | 900 | 30 | 32 |
30x2,5 | 7,98 | 2,0 |
| 29,7 | 32,9 | 1.495 | 1.125 | 30 | 32 |
36x2,5 | 7,98 | 2,0 |
| 29,9 | 33,1 | 1.582 | 1.350 | 30 | 32 |
3x(2x1)C | 19,5 | 1,3 |
| 18,5 | 20,6 | 500 | 90 | - | - |
4x(2x1)C | 19,5 | 1,3 |
| 20,5 | 22,6 | 615 | 120 | - | - |
6x(2x1)C | 19,5 | 1,3 |
| 24,1 | 26,2 | 850 | 180 | - | - |
3x(2x1,5)C | 13,3 | 1,5 |
| 19,6 | 21,7 | 563 | 135 | - | - |
4x(2x1,5)C | 13,3 | 1,5 |
| 21,7 | 23,8 | 693 | 180 | - | - |
6x(2x1,5)C | 13,3 | 1,5 |
| 26,4 | 28,5 | 1.003 | 270 | - | - |
