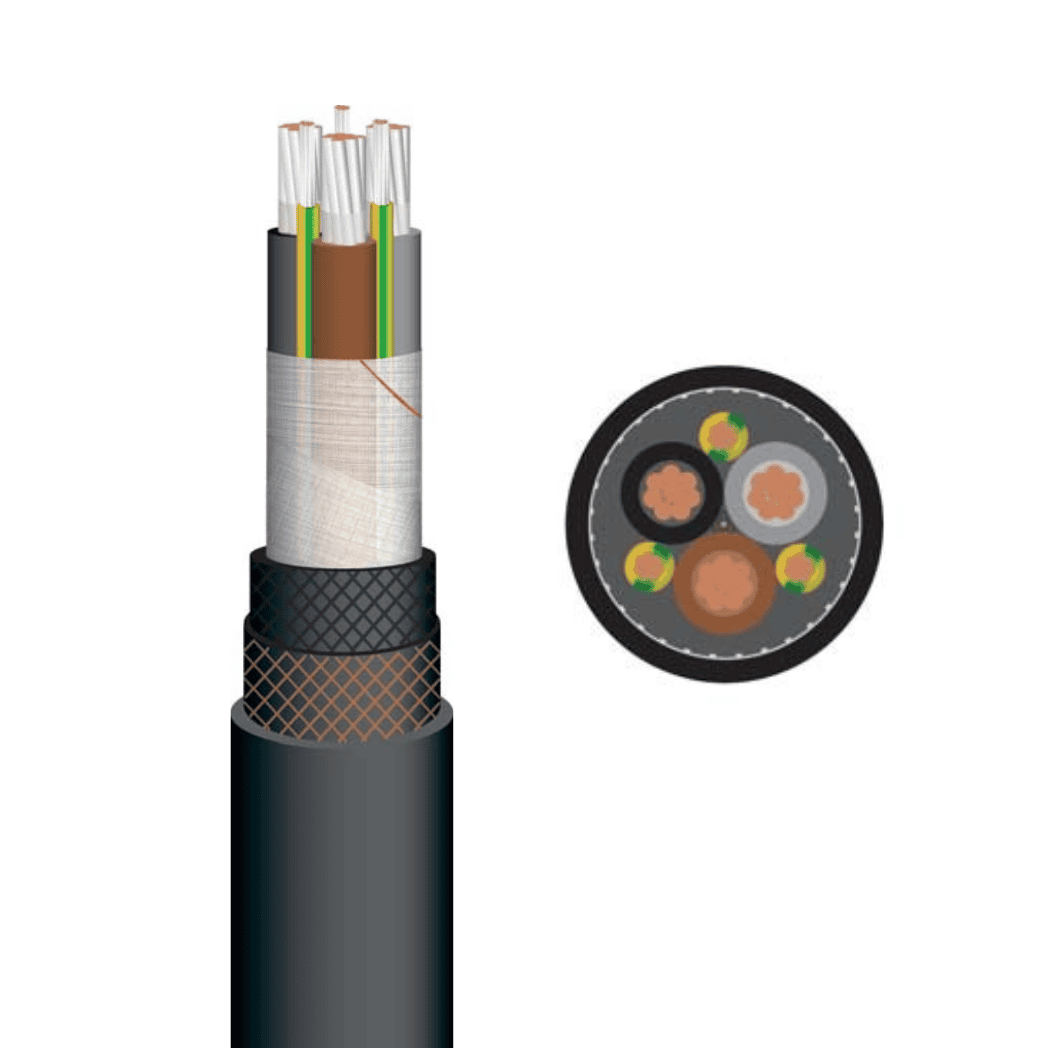

Prysmian PANZERFLEX-L 0.6/1 kV
(N)SHTÖU-J / -O rubber cables suitable for reeling and festoon system
| CONSTRUCTION | |
| Conductor | Tinned copper conductor, flexible cl.5 IEC 60228 Specially designed for mobile application |
| Insulation | HEPR compound better than 3GI3 |
| Inner sheath | Polychloroprene rubberr based compound Better than GM1b |
| Outer sheath | Black polychloroprene rubber compound UV resistant oil and chemical resistant better than 5GM2 |
| Marking | PANZERFLEX-L 0.6/1kV nc x cross section |
| PARAMETERS | ||
| Electrical | Rated voltage | Uo/U = 0.6/1 kV |
| Max. permissible operating voltage in AC systems | Um = 1.2 kV | |
| AC test voltage over 5 minutes | 3.5 kV | |
| Thermal | Fully flexible operation | -25°C |
| Fixed installation | -40°C | |
| Max. permissible operating temperature of the conductor | 90°C | |
| Short-circuit temperature of the conductor | 250°C | |
| Mechanical | Tensile load | Up to 20 N/m2 |
| Festoon systems | Up to 240 m/min | |
| Chemical | Resistant to oil | Acc. to VDE / IEC standard |
| Weather resistance | Unrestricted use outdoor and indoor, UV resistant, moisture resistant. | |
PANZERFLEX-L 0.6/1 kV (N)SHTÖU-J / -O power cables
| N. of cores and nominal section (n•mm2) | Main conductor | Splitted protec. earth cond. nom. diam. mm | Overall diameter | Net weight kg/km | Max. permissible tensile force N | Current carrying capacity at 30°C | Short circuit current 80°C to 200°C kA | ||||||
| D.C. resist. at 20°C (Ω/km) | Nom. diam. mm | Min. mm | Max. mm | Laid straight A | Suspended in free air A | Spiral or 1 layer A | 2 layer A | 3 layer A | |||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1x16 | 1,24 | 5,4 |
| 10,6 | 12,7 | 265 | 320 | 141 | 148 | - | - | - | 2,0 |
1x25 | 0,795 | 6,6 |
| 12,2 | 14,3 | 370 | 500 | 187 | 196 | - | - | - | 3,2 |
1x35 | 0,565 | 8,0 |
| 13,9 | 15,9 | 505 | 700 | 231 | 243 | - | - | - | 4,5 |
1x50 | 0,393 | 9,3 |
| 15,6 | 17,7 | 650 | 1000 | 288 | 302 | - | - | - | 6,4 |
1x70 | 0,277 | 11,2 |
| 17,6 | 19,7 | 875 | 1400 | 357 | 375 | - | - | - | 9,0 |
1x95 | 0,210 | 13,0 |
| 20,0 | 22,1 | 1120 | 1900 | 430 | 452 | - | - | - | 12,2 |
1x120 | 0,164 | 15,0 |
| 22,2 | 24,3 | 1440 | 2400 | 503 | 528 | - | - | - | 15,4 |
1x150 | 0,132 | 16,9 |
| 24,9 | 27,0 | 1730 | 3000 | 577 | 606 | - | - | - | 19,2 |
1x185 | 0,108 | 18,3 |
| 26,7 | 28,8 | 2070 | 3700 | 658 | 691 | - | - | - | 23,7 |
1x240 | 0,0817 | 20,5 |
| 29,0 | 32,2 | 2660 | 4800 | 771 | 810 | - | - | - | 30,7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3x4 | 5,09 | 2,4 |
| 14,9 | 17,0 | 395 | 240 | 41 | 43 | 33 | 25 | 20 | 0,51 |
3x6 | 3,39 | 3,1 |
| 17,2 | 19,3 | 525 | 360 | 53 | 56 | 42 | 32 | 26 | 0,77 |
3x10 | 1,95 | 4,2 |
| 20,3 | 22,4 | 765 | 600 | 74 | 78 | 59 | 45 | 36 | 1,3 |
3x16 | 1,24 | 5,4 |
| 23,6 | 25,7 | 1080 | 960 | 99 | 104 | 79 | 60 | 49 | 2,0 |
3x25 | 0,795 | 6,6 |
| 27,0 | 29,1 | 1470 | 1500 | 131 | 138 | 105 | 80 | 64 | 3,2 |
3x35 | 0,565 | 8,0 |
| 30,4 | 33,6 | 2030 | 2100 | 162 | 170 | 130 | 99 | 79 | 4,5 |
3x50 | 0,393 | 9,3 |
| 35,4 | 38,6 | 2680 | 3000 | 202 | 212 | 162 | 123 | 99 | 6,4 |
3x70 | 0,277 | 11,2 |
| 39,6 | 42,8 | 3530 | 4200 | 250 | 263 | 200 | 153 | 123 | 9,0 |
3x95 | 0,210 | 13,0 |
| 43,8 | 47,0 | 4400 | 5700 | 301 | 316 | 241 | 184 | 147 | 12,2 |
3x120 | 0,164 | 15,0 |
| 49,0 | 53,5 | 5730 | 7200 | 352 | 370 | 282 | 215 | 172 | 15,4 |
3x150 | 0,132 | 16,9 |
| 55,5 | 60,0 | 7040 | 9000 | 404 | 424 | 323 | 246 | 198 | 19,2 |
3x185 | 0,108 | 18,3 |
| 59,5 | 64,0 | 8320 | 11100 | 461 | 484 | 369 | 281 | 226 | 23,7 |
3x240 | 0,0817 | 20,5 |
| 67,5 | 72,0 | 10850 | 14400 | 540 | 567 | 432 | 329 | 265 | 30,7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4x4 | 5,09 | 2,4 |
| 16,0 | 18,1 | 460 | 320 | 41 | 43 | 33 | 25 | 20 | 0,51 |
4x6 | 3,39 | 3,1 |
| 18,4 | 20,5 | 615 | 480 | 53 | 56 | 42 | 32 | 26 | 0,77 |
4x10 | 1,95 | 4,2 |
| 21,9 | 24,0 | 920 | 800 | 74 | 78 | 59 | 45 | 36 | 1,3 |
4x16 | 1,24 | 5,4 |
| 25,5 | 27,6 | 1310 | 1280 | 99 | 104 | 79 | 60 | 49 | 2,0 |
4x25 | 0,795 | 6,6 |
| 29,6 | 32,8 | 1860 | 2000 | 131 | 138 | 105 | 80 | 64 | 3,2 |
4x35 | 0,565 | 8,0 |
| 33,2 | 36,4 | 2490 | 2800 | 162 | 170 | 130 | 99 | 79 | 4,5 |
4x50 | 0,393 | 9,3 |
| 38,4 | 41,6 | 3300 | 4000 | 202 | 212 | 162 | 123 | 99 | 6,4 |
4x70 | 0,277 | 11,2 |
| 43,6 | 46,8 | 4420 | 5600 | 250 | 263 | 200 | 153 | 123 | 9,0 |
4x95 | 0,210 | 13,0 |
| 48,5 | 53,0 | 5610 | 7600 | 301 | 316 | 241 | 184 | 147 | 12,2 |
4x120 | 0,164 | 15,0 |
| 55,5 | 60,0 | 7360 | 9600 | 352 | 370 | 282 | 215 | 172 | 15,4 |
4x150 | 0,132 | 16,9 |
| 61,0 | 65,5 | 8770 | 12000 | 404 | 424 | 323 | 246 | 198 | 19,2 |
4x185 | 0,108 | 18,3 |
| 67,5 | 72,0 | 10730 | 14800 | 461 | 484 | 369 | 281 | 226 | 23,7 |
4x240 | 0,0817 | 20,5 |
| 74,0 | 78,5 | 13560 | 19200 | 540 | 567 | 432 | 329 | 265 | 30,7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5x4 | 5,09 | 2,4 |
| 18,0 | 20,1 | 575 | 400 | 41 | 43 | 33 | 25 | 20 | 0,51 |
5x6 | 3,39 | 3,1 |
| 19,8 | 21,9 | 725 | 600 | 53 | 56 | 42 | 32 | 26 | 0,77 |
5x10 | 1,95 | 4,2 |
| 24,5 | 26,6 | 1140 | 1000 | 74 | 78 | 59 | 45 | 36 | 1,3 |
5x16 | 1,24 | 5,4 |
| 27,6 | 29,7 | 1550 | 1600 | 99 | 104 | 79 | 60 | 49 | 2,0 |
5x25 | 0,795 | 6,6 |
| 32,2 | 35,4 | 2170 | 2500 | 131 | 138 | 105 | 80 | 64 | 3,2 |
5x35 | 0,565 | 8,0 |
| 37,0 | 40,2 | 3080 | 3500 | 162 | 170 | 130 | 99 | 79 | 4,5 |
5x50 | 0,393 | 9,3 |
| 42,2 | 45,4 | 4010 | 5000 | 202 | 212 | 162 | 123 | 99 | 6,4 |
5x70 | 0,277 | 11,2 |
| 48,0 | 52,5 | 5480 | 7000 | 250 | 263 | 200 | 153 | 123 | 9,0 |
5x95 | 0,210 | 13,0 |
| 54,5 | 59,0 | 7010 | 9500 | 301 | 316 | 241 | 184 | 147 | 12,2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3x50+3x25/3 | 0,393 | 9,3 | 4,0 | 34,2 | 37,4 | 2730 | 3000 | 202 | 212 | 162 | 123 | 99 | 6,4 |
3x70+3x35/3 | 0,277 | 11,2 | 4,9 | 39,6 | 42,8 | 3740 | 4200 | 250 | 263 | 200 | 153 | 123 | 9,0 |
3x95+3x50/3 | 0,210 | 13,0 | 5,4 | 43,8 | 47,0 | 4690 | 5700 | 301 | 316 | 241 | 184 | 147 | 12,2 |
3x120+3x70/3 | 0,164 | 15,0 | 6,6 | 49,5 | 54,0 | 6220 | 7200 | 352 | 370 | 282 | 215 | 172 | 15,4 |
3x150+3x70/3 | 0,132 | 16,9 | 6,6 | 55,5 | 60,0 | 7480 | 9000 | 404 | 424 | 323 | 246 | 198 | 19,2 |
3x185+3x95/3 | 0,108 | 18,3 | 8,0 | 59,5 | 64,0 | 9020 | 11100 | 461 | 484 | 369 | 281 | 226 | 23,7 |
3x240+3x120/3 | 0,0817 | 20,5 | 9,3 | 67,5 | 72,0 | 11760 | 14400 | 540 | 567 | 432 | 329 | 265 | 30,7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4x10+4x2.5 | 1,95 | 4,2 |
| 23,2 | 25,3 | 1060 | 80 | 74 | 78 | 59 | 45 | 36 | 1,3 |
4x16+4x2.5 | 1,24 | 5,4 |
| 25,5 | 27,6 | 1360 | 1280 | 99 | 104 | 79 | 60 | 4 | 2,0 |
4x25+4x2.5 | 0,795 | 6,6 |
| 29,6 | 32,8 | 1910 | 2000 | 131 | 138 | 105 | 80 | 64 | 3,2 |
4x35+4x2.5 | 0,565 | 8,0 |
| 32,8 | 36,0 | 2530 | 2800 | 162 | 170 | 130 | 99 | 79 | 4,5 |
4x50+4x4 | 0,393 | 9,3 |
| 38,0 | 41,2 | 3370 | 4000 | 202 | 212 | 162 | 123 | 99 | 6,4 |
