Danh mục sản phẩm: |
| |||||

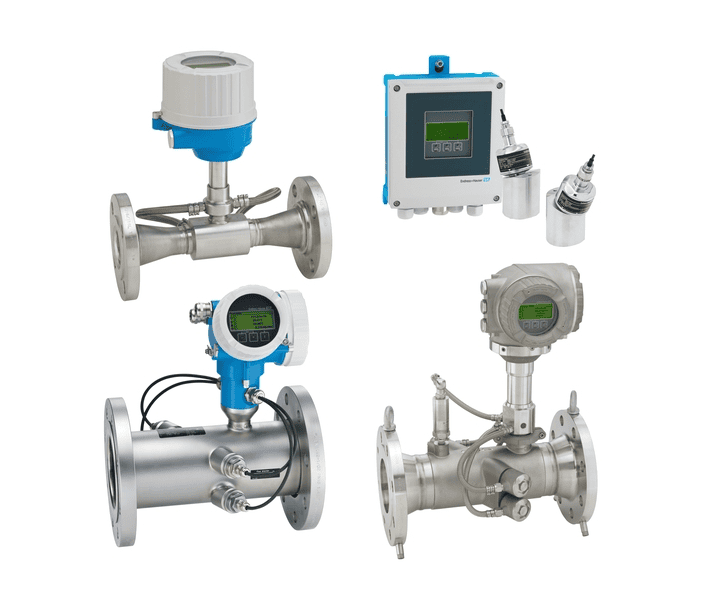

Proline Prosonic Flow G 300 | Proline Prosonic Flow B 200 | Proline Prosonic Flow E 100 | ||||
| - Nominal diameter range: DN 25 to 300 - Max. process pressure: 0.7 to 101 bar a (10.15 to 1464.88 psi a) |
| - Nominal diameter range: + Single-path: DN 50, DN 80 + Two-path: DN 100 to 200 - Max. process pressure: 11 bar a (159 psi a) |
| - Max. measurement error: Volume flow: ± 0.5% o.r. ± 0.02% o.f.s. for 0.5 to 10m/s ± 0.07% o.f.s for flow velocities < 0.5m/s |
|
|
Prosonic Flow E Heat | Proline Prosonic Flow I 400 | Proline Prosonic Flow P 500 | ||||
| - Max. measurement error: MID 004 accuracy class II (2%) |
| - Nominal diameter range: DN 200 to 4000 - N/A, Volume flow: ± 2% o.r. above DN 200 |
| - Dual channel, 1 or 2 paths: DN 15 to 4000 - Max. process pressure: N/A |
|
|
Proline Prosonic Flow W 400 | Teqwave F – Ultrasonic concentration meter | Teqwave H – Ultrasonic concentration meter | ||||
| Ambient temperature range: - DN 15 to 65: -40 to 130°C - DN 50 to 4000: -40 to 130°C |
| - Nominal diameter range: DN 8 to 25 - Max. 16 bar at 20°C |
| - Nominal diameter range: DN 8 to 25 - Max. 16 bar at 20°C |
|
|
Teqwave I – Ultrasonic concentration meter | Teqwave T – Ultrasonic concentration meter | Proline Prosonic Flow 91W | ||||
| - Insertion length: 180mm or 500mm - Max. 16 bar at 20°C |
| - Insertion length: 180mm - Robust, portable transmitter with Li-ion battery 2300mAh |
| - Single channel, 1 or 2 paths: DN 15 to 2000 - Max. process pressure: N/A |
|
|
Proline Prosonic Flow 92F | Proline Prosonic Flow 93T |
| ||||
| - Nominal diameter range: + 2 path: DN 80 to 300 + 3 path: DN 25 to 50 + 4 path: DN 80 to 300 - Max. process pressure: PN 40 / ASME Cl. 300 / JIS 20K |
| Medium temperature range: - DN 15...65: -40°C…+100°C or -40°C…+150°C - DN 50…300: -40°C…+80°C or 0…+170°C - DN 100…4000: -40°C…+80°C |
|
| ||
