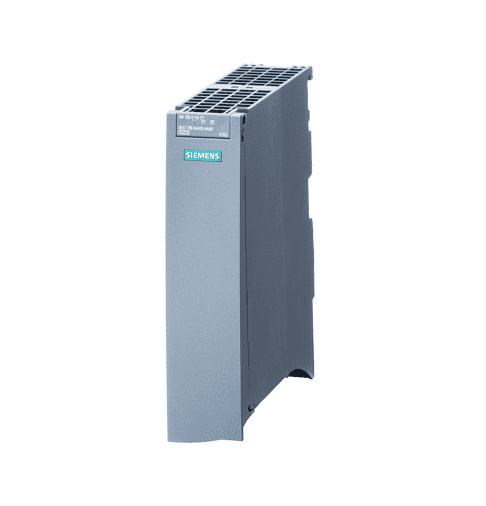

Product type: Siemens Interface Module IM 155-5 PN HF, SIMATIC ET 200MP
Article number: 6ES7155-5AA00-0AC0
| Supply voltage | |
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current | |
| Current consumption (rated value) | 0.2 A; at 24 V DC and without load |
| Current consumption, max. | 1.2 A |
| Inrush current, max. | 9 A |
| I2t | 0.09 A2.s |
Ambient conditions | |
| Ambient temperature during operation - Horizontal installation - Vertical installation | -25°C from FS04 ... +60°C -25°C from FS04 ... +40°C |
| Altitude during operation relating to sea level - Installation altitude above sea level, max. | 5000m; Restrictions for installation altitudes >2000m, see manual |
Dimensions | |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
Weights | |
| Weight, approx. | 350 g |
