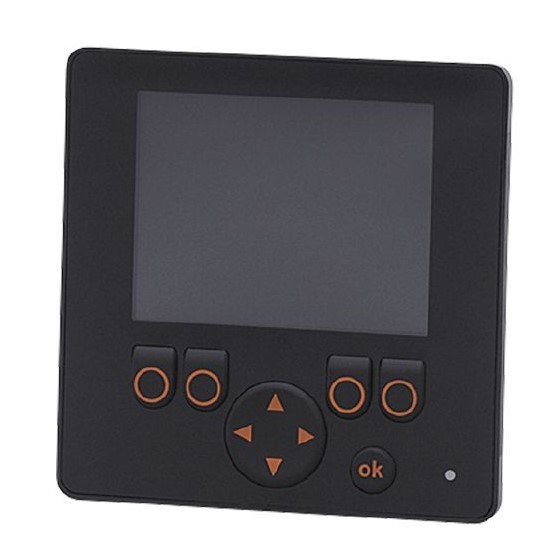

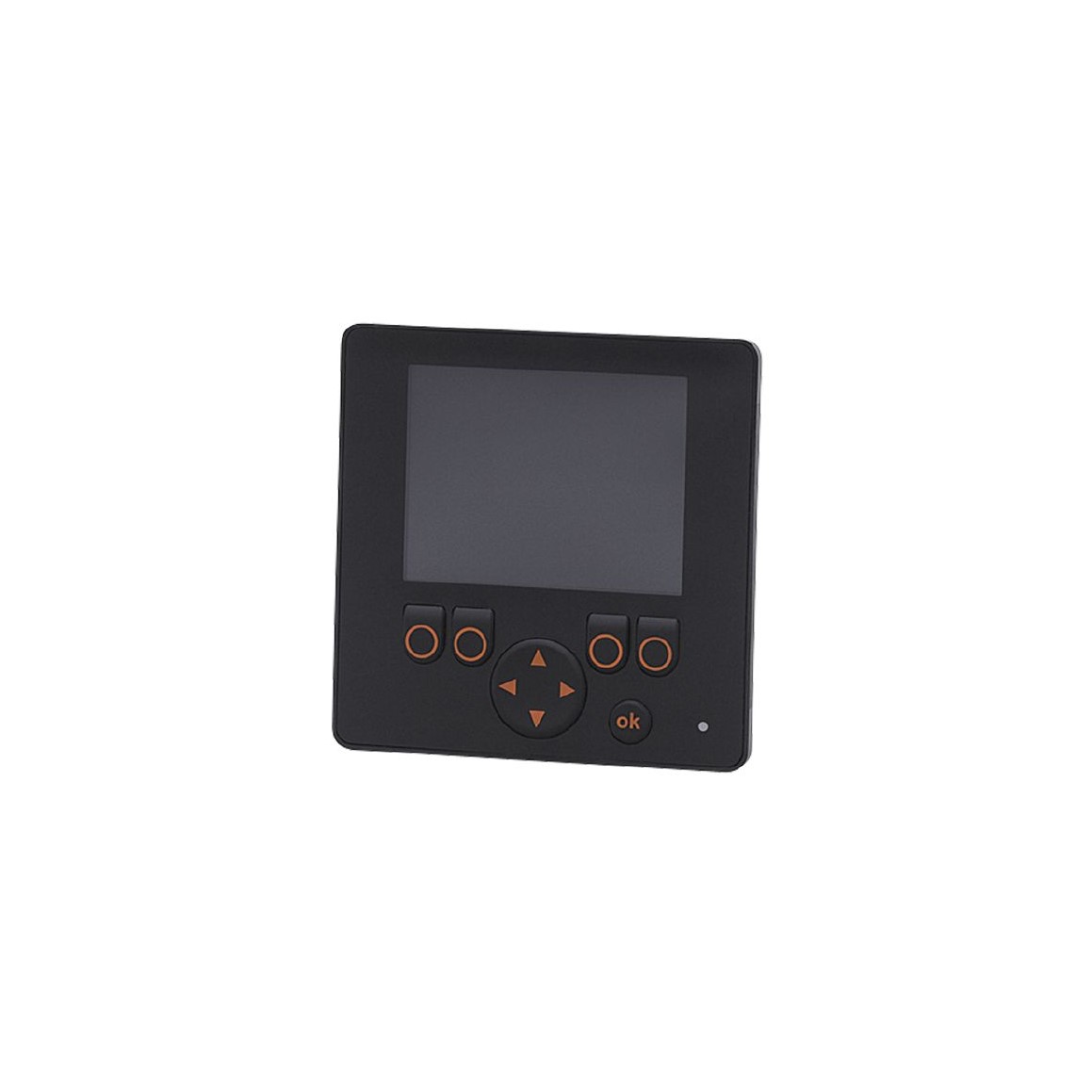

Programmable graphic display for controlling mobile machines
– Communication interface: CAN
– Operating voltage: 8 … 32 V DC
– Nominal voltage: 12 / 24 V DC
– Current consumption: 70 mA (24 V DC; background illumination: 100%)
– Power consumption: 1.68 W
– Ambient temperature: -20 … 70°C
– Storage temperature: -30 … 80°C
– Max. relative air humidity: 90% (non condensing)
– Max. height above sea level: 2000 m
– Protection: IP 65; (on the front; when mounted: IP 67)
