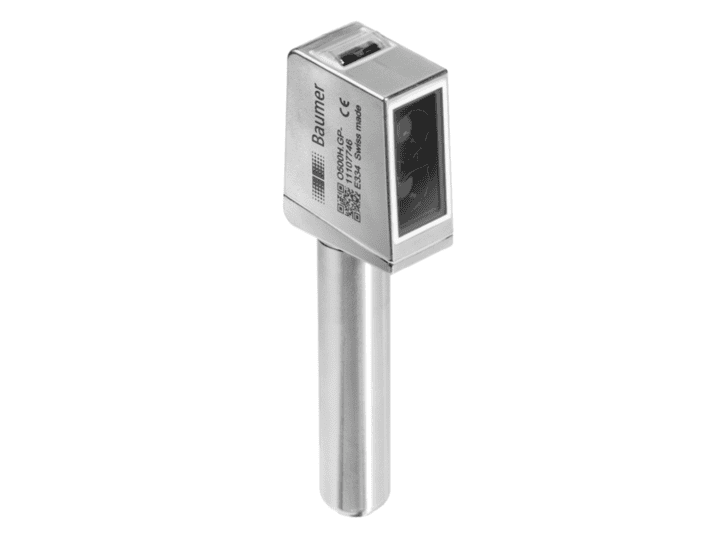

Distance Sensor O500H.DP.2-GLIAO.PVCK Baumer

Type

Distance measuring

Measuring distance Sd

60 … 550 mm

Measuring range Mr

490 mm

Adjustment

Teach-in and IO-Link

Power on indication

LED green

Output indicator

LED yellow

Repeat accuracy

≤ 200 … 5000 µm (Raw)

≤ 150 … 3750 µm (High Speed)

≤ 100 … 2500 µm (Standard)

≤ 50 … 1250 µm (High Accuracy)

Linearity error

± 3% Mr

Beam type

Point

Suppression of reciprocal influence

Yes

Alignment optical axis

< 1°

Temperature drift

< 0,3% Sde/K

Light source

Pulsed Pinpoint LED

Wave length

630 nm

Reponse time / release time

< 1.5 ms (Raw)

< 2.25 ms (High Speed Mode)

< 4.5 ms (Standard Mode)

< 14 ms (High Accuracy Mode)

Voltage supply range +Vs

12 … 30 VDC

Current consumption max. (no load)

30 mA

Voltage drop Vd

< 2 VDC

Output circuit

Analog 4 … 20 mA

Push-pull / IO-Link

Load resistance

< (+Vs – 6 V) / 0,02 A

Output current

100 mA (push-pull)

Switching output

Light operate, switchable

Short circuit protection

Yes

Reverse polarity protection

Yes, Vs to GND

Interface

IO-Link V1.1.3

IO-Link port type

Class A

Baud rate

230,4 kBaud (COM 3)

Cycle time

≥ 0.7 ms

Process data length

48 Bit

Process data structure

Bit 0 = SSC1 (distance)

Bit 1 = SSC2 (distance)

Bit 2 = quality

Bit 3 = alarm

Bit 8-15 = scale factor

Bit 16-47 = 32 Bit measurement

Adjustable parameters

Switching point

Operation mode

Time filters

LED-function

Output logic

Output circuit

Analog output characteristic

Deactivate the sensor element

Locater function

Teach-in mode

Additional data

Distance

Excess gain

Device temperature

Width / diameter

20.2 mm

Height / length

47.7 mm

Depth

36.4 mm

Type

Rectangular

Housing material

Stainless steel 1.4404 (V4A)

Front (optics)

PMMA

Connection types

Cable 4 pin, 2 m

Protection class

IP 68/69K & proTect+

Operating temperature

-25°C … +60°C

Storage temperature

-40°C … +70°C

Vibration (sinusoidal)

IEC 60068-2-6:2008

10 g at f = 10 – 2000 Hz, duration 150 min per axis

Shock (semi-sinusoidal)

IEC 60068-2-27:2009

50 g / 11 ms, 10 impulses per axis and direction
