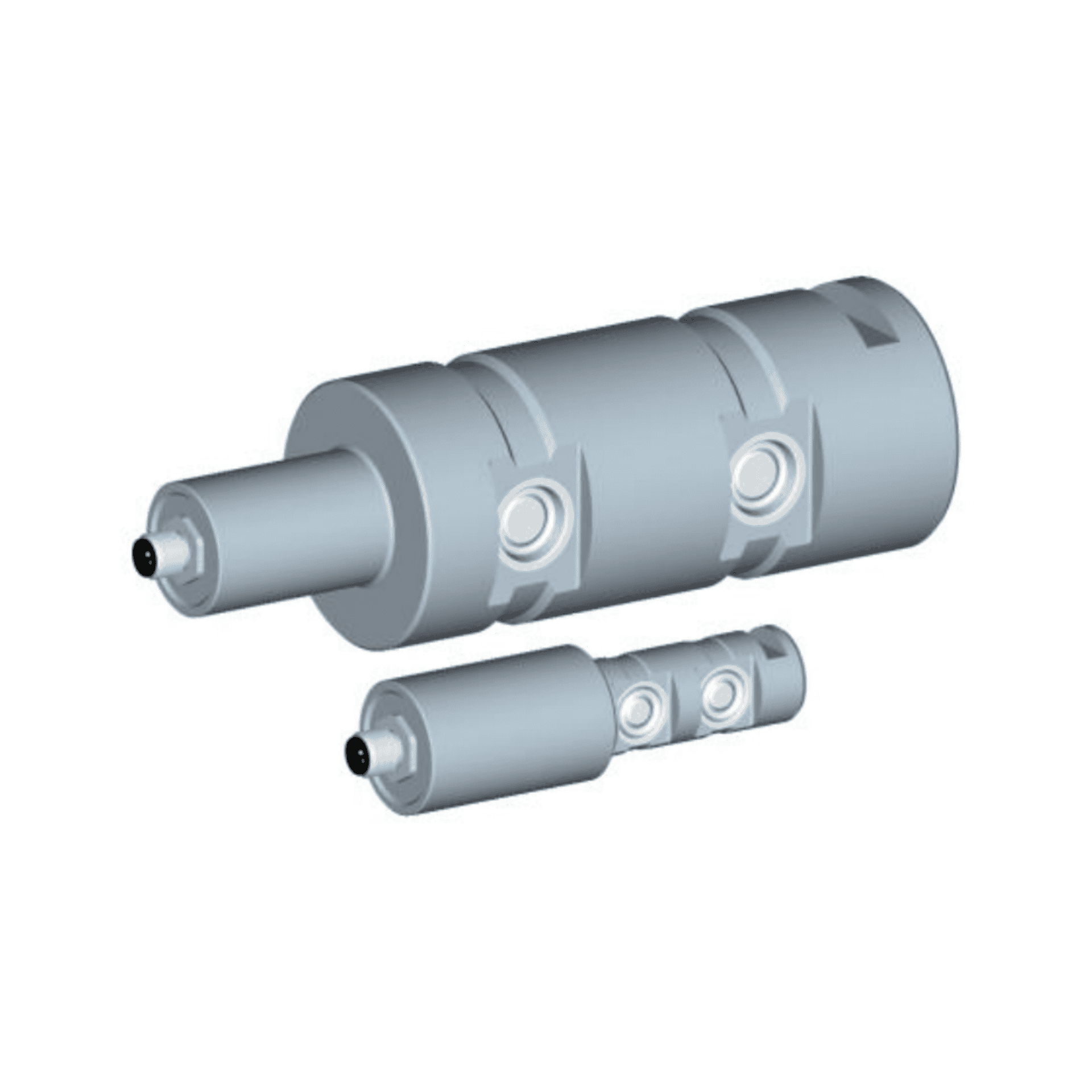

| Duty Load (KN) | ØB | LA | A | C | D | E | H | G | |
| 5 | 20 | 120 | 50.5 | 50.5 | 20 | 10 | 4 | 5 | |
| 10 | 25 | 130 | 60.5 | 60.5 | 25 | 12.5 | 4.5 | 5 | |
| 20 | 30 | 142 | 72.5 | 72.5 | 30 | 15 | 5.5 | 6 | |
| 30 | 35 | 149.5 | 82.5 | 82.5 | 35 | 17.5 | 6 | 6 | |
| 50 | 40 | 163 | 97.5 | 97.5 | 40 | 22.5 | 6.5 | 6 | |
| 100 | 50 | 178 | 112.5 | 112.5 | 50 | 23 | 7 | 8 | |
| 200 | 70 | 226 | 160.5 | 160.5 | 70 | 35 | 10 | 10 | |

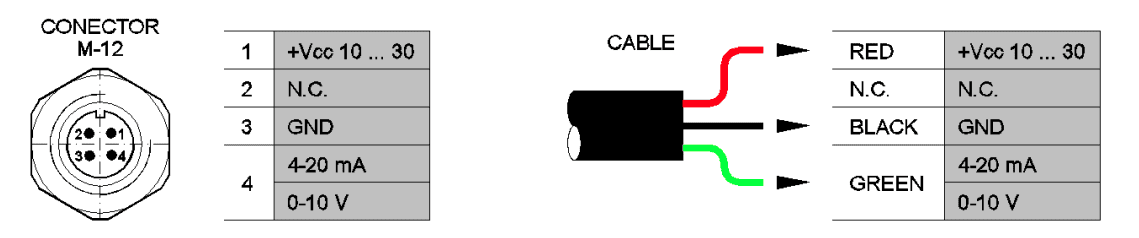

| Electrical connection for standard cable | |||||||||
| |||||||||
| Technical Characteristics | |||||||||
| Accuracy | <0.5% | Insulation resistence | 4 GΩ / 100 V | ||||||
| (V.Test=100V) | |||||||||
| Hysteresis | <0.2% F.S. | Max. work load | 150% F.S. | ||||||
| Creep in 30 minutes | <0.1% F.S. | Breaking load | >300% F.S. | ||||||
| Temp. effect on sensibility | 0.2% / 10°C | Load limit without loss of | 200% F.S. | ||||||
| characteristics | |||||||||
| Temp. effect on zero | 0.2% / 10°C | Protection | IP 67 | ||||||
| Working range of temp. | –40°C … +70°C | Electrical protection | Reverse voltage | ||||||
| and short circuit | |||||||||
| Max. deformation | <0.1 mm F.S. | Cross sensitivity | <5% | ||||||
| Electrical connector | Circular connector | Manufacturing material | Stainless steel | ||||||
| M12, 4 pin | (17-4 PH) | ||||||||
| Analogue output | |||||||||
| Output signal | 4…20 mA; 3 wires | Current consumption | <15mA | ||||||
| 0…10VDC; 3 wires | |||||||||
| Required power supply | 12 - 30 VDC | ||||||||
