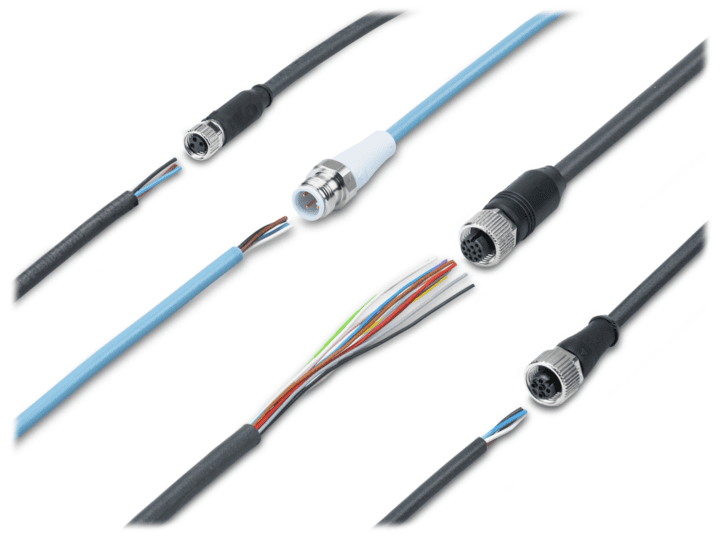

Cable CAM12.A12 Baumer


Product name

Head A

Cable

Head B/OCE

Features/Surrounding

CAM12.A12-11230358

No.: 11230358

Head A: Connection: M12

Head A: Gender: Female

Head A: Angle cable outlet: 0°

Head A: No. of poles: 12

Head A: Coding: A

Head A: Degree of protection: IP65, IP66K, IP67

Labeling sleeve side A: Yes

Cable length: 200 cm

External sheath: Material: PUR

Shielded: Yes

Conductor structure: 18 x 0.1 mm

Wire cross section: 0.14 mm²

Cable diameter: 6.5 mm ± 5%

Stripping length: 80 mm

Head B: Connection: Open-ended wires

Labeling sleeve side B: Yes

Temperature range (fixed): -25…+80°C

Dragchain capable: Yes

Cable: Torsion capable: Yes

Head A: Acid and alkali resistant: No

Approvals: CE

CAM12.A12-11230412

No.: 11230412

Head A: Connection: M12

Head A: Gender: Female

Head A: Angle cable outlet: 90°

Head A: No. of poles: 12

Head A: Coding: A

Head A: Degree of protection: IP65, IP66K, IP67

Labeling sleeve side A: Yes

Cable length: 200 cm

External sheath: Material: PUR

Shielded: Yes

Conductor structure: 18 x 0.1 mm

Wire cross section: 0.14 mm²

Cable diameter: 6.5 mm ± 5%

Stripping length: 80 mm

Head B: Connection: Open-ended wires

Labeling sleeve side B: Yes

Temperature range (fixed): -25…+80°C

Dragchain capable: Yes

Cable: Torsion capable: Yes

Head A: Acid and alkali resistant: No

Approvals: CE

CAM12.A12-11232650

No.: 11232650

Head A: Connection: M12

Head A: Gender: Female

Head A: Angle cable outlet: 0°

Head A: No. of poles: 12

Head A: Coding: A

Head A: Degree of protection: IP65, IP66K, IP67

Labeling sleeve side A: Yes

Cable length: 100 cm

External sheath: Material: PVC

Shielded: No

Conductor structure: 18 x 0.1 mm

Wire cross section: 0.14 mm²

Cable diameter: 6 mm ± 5%

Stripping length: 80 mm

Head B: Connection: Open-ended wires

Labeling sleeve side B: Yes

Temperature range (fixed): -25…+80°C

Dragchain capable: No

Head A: Acid and alkali resistant: No

Approvals: CE

CAM12.A12-11702145

No.: 11702145

Head A: Connection: M12

Head A: Gender: Female

Head A: Angle cable outlet: 0°

Head A: No. of poles: 12

Head A: Coding: A

Head A: Degree of protection: IP65, IP66K, IP67

Labeling sleeve side A: Yes

Cable length: 150 cm

External sheath: Material: PVC

Shielded: No

Conductor structure: 18 x 0.1 mm

Wire cross section: 0.14 mm²

Cable diameter: 6 mm ± 5%

Head B: Connection: M12

Head B: Gender: Male

Head B: Angle cable outlet: 0°

Head B: No. of poles: 5

Head B: Coding: A

Head B: Degree of protection: IP67

Labeling sleeve side B: Yes

Temperature range (fixed): -25…+70°C

Dragchain capable: No

Cable: Torsion capable: No

Head A: Acid and alkali resistant: No

Approvals: CE
