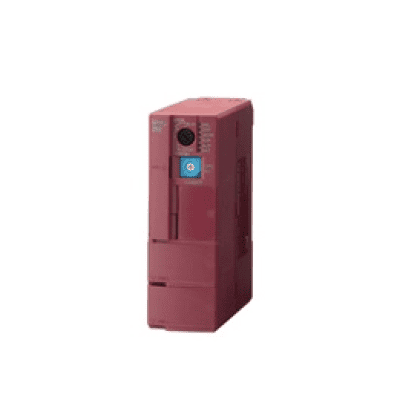

Bộ Lập Trình Fuji CPU NP1PS-74R
Type: SPH300 NP1PS-74R
Control system: Stored program, Cyclic scanning system (default task), periodic task, event task
CPU: 32-bit OS processor, 32-bit execution processor
Hotline: 098 785 4488

Kalmar

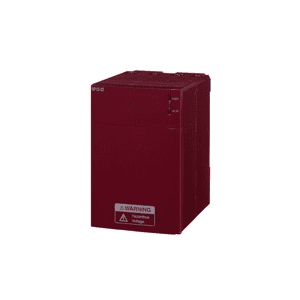

Power Supply Module NP1S-22
| Model | : NP1S-22 |
| Rated input voltage | : 100 to 120/200 to 240 V AC |
| Voltage tolerance | : 85 to 132 V AC, 170 to 264 V AC |
| Rated frequency | : 50/60 Hz |
| Dropout tolerance | : 1 cycle or less |
| (Rated voltage, rated load) | |
| AC waveform distortion factor | : 5% or less |
| Leakage current | : 0.25mA or less |
| Inrush current | : 22.5 Ao-p or less |
| (ambient temperature = 25°C not repeated) | |
| Power consumption | : 110 VA or less |
| Rated output voltage | : 24 V DC (22.8 to 26.4 V DC) |
| Output current | : 0 to 1.46 A |
| Insulation method | : Transducer |
| Dielectric strength | : 2300 V AC, 1 minute |
| Between power input terminal and ground | |
| Insulation resistance | : 10 MΩ or more with 500 V DC megger |
| No. of occupied slots | : 2 slots |
| Alarm output | : Relay NC contact output |
| (Monitoring of output voltage: 24 V DC, 0.3 A or less) | |
| Multiple power supply | : Compatible |
| (Up to 3 units mountable on the base board) | |
| Weight | : Approx. 360g |
